# Building a Search Bar in Qwik

Adding full-text search capabilities to your Qwik projects has never been easier. This walkthrough will take you through all the steps required to build a simple book search application using Qwik and the Typesense ecosystem.

# What is Typesense?

Typesense is a modern, open-source search engine designed to deliver fast and relevant search results. It's like having a smart search bar that knows what your users want, even when they don't type it perfectly.

Picture this: you're running an e-commerce store selling electronic gadgets. A customer searches for "ipone 13 pro" (with a typo). Instead of showing "no results found" and losing a potential sale, Typesense understands they meant "iPhone 13 Pro" and shows them exactly what they're looking for. That's the power of intelligent search!

What sets Typesense apart:

  • Speed - Delivers search results in under 50ms, keeping your users engaged.
  • Typo tolerance - Handles misspellings gracefully, so users always find what they need.
  • Feature-Rich - Full-text search, Synonyms, Curation Rules, Semantic Search, Hybrid search, Conversational Search (like ChatGPT for your data), RAG, Natural Language Search, Geo Search, Vector Search and much more wrapped in a single binary for a batteries-included developer experience.
  • Simple setup - Get started in minutes with Docker, no complex configuration needed like Elasticsearch.
  • Cost-effective - Self-host for free, unlike expensive alternatives like Algolia.
  • Open source - Full control over your search infrastructure, or use Typesense Cloud (opens new window) for hassle-free hosting.

# Prerequisites

This guide will use Qwik (opens new window), a resumable framework for building instant-loading web applications.

Please ensure you have Node.js (opens new window) and Docker (opens new window) installed on your machine before proceeding. You will need it to run a typesense server locally and load it with some data. This will be used as a backend for this project.

This guide will use a Linux environment, but you can adapt the commands to your operating system.

# Step 1: Setup your Typesense server

Once Docker is installed, you can run a Typesense container in the background using the following commands:

  • Create a folder that will store all searchable data stored for Typesense:

    mkdir "$(pwd)"/typesense-data

  • Run the Docker container:

  • Verify if your Docker container was created properly:

    docker ps

  • You should see the Typesense container running without any issues:

    CONTAINER ID   IMAGE                      COMMAND                  CREATED       STATUS       PORTS                                         NAMES
82dd6bdfaf66   typesense/typesense:latest   "/opt/typesense-serv…"   1 min ago   Up 1 minutes   0.0.0.0:8108->8108/tcp, [::]:8108->8108/tcp   nostalgic_babbage

  • That's it! You are now ready to create collections and load data into your Typesense server.

TIP

You can also set up a managed Typesense cluster on Typesense Cloud (opens new window) for a fully managed experience with a management UI, high availability, globally distributed search nodes and more.

# Step 2: Create a new books collection and load sample dataset into Typesense

Typesense needs you to create a collection in order to search through documents. A collection is a named container that defines a schema and stores indexed documents for search. Collection bundles three things together:

  1. Schema
  2. Document
  3. Index

You can create the books collection for this project using this curl command:

curl "http://localhost:8108/collections" \
      -X POST \
      -H "Content-Type: application/json" \
      -H "X-TYPESENSE-API-KEY: ${TYPESENSE_API_KEY}" \
      -d '{
        "name": "books",
        "fields": [
          {"name": "title", "type": "string", "facet": false},
          {"name": "authors", "type": "string[]", "facet": true},
          {"name": "publication_year", "type": "int32", "facet": true},
          {"name": "average_rating", "type": "float", "facet": true},
          {"name": "image_url", "type": "string", "facet": false},
          {"name": "ratings_count", "type": "int32", "facet": true}
        ],
        "default_sorting_field": "ratings_count"
      }'

Now that the collection is set up, we can load the sample dataset.

  1. Download the sample dataset:

    curl -O https://dl.typesense.org/datasets/books.jsonl.gz

  2. Unzip the dataset:

    gunzip books.jsonl.gz

  3. Load the dataset in to Typesense:

    curl "http://localhost:8108/collections/books/documents/import" \
      -X POST \
      -H "X-TYPESENSE-API-KEY: ${TYPESENSE_API_KEY}" \
      --data-binary @books.jsonl

You should see a bunch of success messages if the data load is successful.

Now you're ready to actually build the application.

# Step 3: Set up your Qwik project

Create a new Qwik project using this command:

npm create qwik@latest

When prompted, choose the following options:

  • Project name: typesense-qwik-search
  • Starter: Empty App
  • Install dependencies: Yes

Once your project scaffolding is ready, navigate to the project directory and install the required dependencies:

cd typesense-qwik-search
npm i typesense typesense-instantsearch-adapter instantsearch.js instantsearch.css

Let's go over these dependencies one by one:

  • typesense
    • Official JavaScript client for Typesense.
    • It isn't required for the UI, but it is needed if you want to interact with the Typesense server from server-side code.
  • instantsearch.js
    • A vanilla JavaScript library from Algolia that provides widgets for building search interfaces.
    • Offers components like searchBox, hits and others that make displaying search results easy.
    • It also abstracts state management and other complex stuff.
    • By itself, it's designed to work with Algolia's hosted search service and not Typesense.
  • typesense-instantsearch-adapter (opens new window)
    • This is the key library that acts as a bridge between instantsearch.js and our self-hosted Typesense server.
    • This implements the InstantSearch.js adapter that the library expects.
    • Translates the InstantSearch.js queries to Typesense API calls.
  • instantsearch.css
    • Pre-built CSS themes for InstantSearch widgets.
    • We'll use the Satellite theme for a clean, modern look.

# Project Structure

Let's create the project structure step by step. After each step, we'll show you how the directory structure evolves.

  1. After creating the basic Qwik app and installing the required dependencies, your project structure should look like this:

    typesense-qwik-search/
├── node_modules/
├── public/
│   ├── favicon.svg
│   ├── manifest.json
│   └── robots.txt
├── src/
│   ├── components/
│   │   └── router-head/
│   ├── routes/
│   │   └── index.tsx
│   ├── entry.dev.tsx
│   ├── entry.preview.tsx
│   ├── entry.ssr.tsx
│   ├── global.css
│   └── root.tsx
├── .gitignore
├── package.json
├── tsconfig.json
└── vite.config.ts

  2. Create the environment variables file:

    touch .env

    Add this to .env:

    PUBLIC_TYPESENSE_API_KEY=xyz
PUBLIC_TYPESENSE_HOST=localhost
PUBLIC_TYPESENSE_PORT=8108
PUBLIC_TYPESENSE_PROTOCOL=http
PUBLIC_TYPESENSE_INDEX=books

  3. Create the utils directory and typesense.ts file:

    mkdir -p src/utils
touch src/utils/typesense.ts

    Your project structure should now look like this:

    typesense-qwik-search/
├── src/
│   ├── components/
│   │   └── router-head/
│   ├── routes/
│   │   └── index.tsx
│   ├── utils/
│   │   └── typesense.ts
│   ├── entry.dev.tsx
│   ├── entry.preview.tsx
│   ├── entry.ssr.tsx
│   ├── global.css
│   └── root.tsx
├── .env
├── .gitignore
├── package.json
├── tsconfig.json
└── vite.config.ts

  4. Copy this code into src/utils/typesense.ts:

    import TypesenseInstantSearchAdapter from "typesense-instantsearch-adapter";

const getPort = (envPort: string | undefined): number => {
  if (!envPort) return 8108;
  const parsed = Number(envPort);
  return isNaN(parsed) ? 8108 : parsed;
};

export const typesenseInstantsearchAdapter = new TypesenseInstantSearchAdapter({
  server: {
    apiKey: import.meta.env.PUBLIC_TYPESENSE_API_KEY || "xyz",
    nodes: [
      {
        host: import.meta.env.PUBLIC_TYPESENSE_HOST || "localhost",
        port: getPort(import.meta.env.PUBLIC_TYPESENSE_PORT),
        protocol: import.meta.env.PUBLIC_TYPESENSE_PROTOCOL || "http",
      },
    ],
  },
  additionalSearchParameters: {
    query_by: "title,authors",
    query_by_weights: "4,2",
    num_typos: 1,
    sort_by: "ratings_count:desc",
  },
});

export const searchClient = typesenseInstantsearchAdapter.searchClient;
export const INDEX_NAME = import.meta.env.PUBLIC_TYPESENSE_INDEX || "books";

    This config file creates a reusable adapter that connects your Qwik application to your Typesense backend. The additionalSearchParameters configure how search works:

    • query_by: Search across title and authors fields
    • query_by_weights: Title is weighted 2x more than authors (4:2 ratio)
    • num_typos: Allow 1 typo for fuzzy matching
    • sort_by: Sort results by popularity (ratings count)

  5. Create the types directory and Book type:

    mkdir -p src/types
touch src/types/Book.ts

    Add this to src/types/Book.ts:

    export interface Book {
  id: string;
  title: string;
  authors: string[];
  publication_year: number;
  average_rating: number;
  image_url: string;
  ratings_count: number;
}

  6. Create the component files:

    touch src/components/BookCard.tsx
touch src/components/BookList.tsx
touch src/components/Heading.tsx

    Your project structure should now look like this:

    typesense-qwik-search/
├── src/
│   ├── components/
│   │   ├── router-head/
│   │   ├── BookCard.tsx
│   │   ├── BookList.tsx
│   │   └── Heading.tsx
│   ├── routes/
│   │   └── index.tsx
│   ├── types/
│   │   └── Book.ts
│   ├── utils/
│   │   └── typesense.ts
│   ├── entry.dev.tsx
│   ├── entry.preview.tsx
│   ├── entry.ssr.tsx
│   ├── global.css
│   └── root.tsx
├── .env
├── .gitignore
├── package.json
├── tsconfig.json
└── vite.config.ts

  7. Let's create the BookCard component. Add this to src/components/BookCard.tsx:

    import { component$, useSignal } from "@builder.io/qwik";
import type { Book } from "../types/Book";

interface BookCardProps {
  book: Book;
}

export const BookCard = component$<BookCardProps>(({ book }) => {
  const {
    title,
    authors,
    publication_year,
    image_url,
    average_rating,
    ratings_count,
  } = book;

  const imageError = useSignal(false);
  const hasRating = typeof average_rating === 'number' && average_rating > 0;
  const starCount = hasRating ? Math.round(average_rating) : 0;

  return (
    <div class="flex gap-6 p-6 bg-white rounded-lg shadow-md hover:shadow-lg transition-shadow duration-200">
      <div class="shrink-0 w-32 h-48 bg-gray-100 rounded-md overflow-hidden">
        {image_url && !imageError.value ? (
          <img
            src={image_url}
            alt={title}
            width="128"
            height="192"
            class="w-full h-full object-cover"
            onError$={() => {
              imageError.value = true;
            }}
          />
        ) : (
          <div class="w-full h-full flex items-center justify-center text-gray-400">
            No Image
          </div>
        )}
      </div>
      <div class="flex-1 flex flex-col">
        <h3 class="text-xl font-semibold text-gray-900 mb-2 line-clamp-2">
          {title}
        </h3>
        <p class="text-gray-600 mb-1 text-sm">
          By: {authors && authors.length > 0 ? authors.join(", ") : "Unknown"}
        </p>
        {publication_year && (
          <p class="text-gray-500 text-xs mb-2">
            Published: {publication_year}
          </p>
        )}
        <div class="mt-auto pt-2 flex items-center">
          {hasRating ? (
            <>
              <div class="text-amber-500 text-lg leading-none">
                {"★".repeat(starCount)}
                {"☆".repeat(5 - starCount)}
              </div>
              <span class="ml-2 text-xs text-gray-600">
                {typeof average_rating === 'number' ? average_rating.toFixed(1) : '0.0'}{" "}
                {typeof ratings_count === 'number' &&
                  `(${ratings_count.toLocaleString()} ratings)`}
              </span>
            </>
          ) : (
            <span class="text-xs text-gray-400">No ratings yet</span>
          )}
        </div>
      </div>
    </div>
  );
});

    This component displays individual book cards with:

    • Book cover image with error handling
    • Title, authors, and publication year
    • Star rating visualization
    • Ratings count

  8. Create the BookList component in src/components/BookList.tsx:

    import { component$ } from "@builder.io/qwik";
import type { Book } from "../types/Book";
import { BookCard } from "./BookCard";

interface BookListProps {
  books: Book[];
  isSearching: boolean;
}

export const BookList = component$<BookListProps>(({ books, isSearching }) => {
  if (!books || books.length === 0) {
    return (
      <div class="text-center py-12 text-gray-500">
        {isSearching
          ? "No books found. Try a different search term."
          : "Start typing to search for books."}
      </div>
    );
  }

  return (
    <div class="grid grid-cols-1 md:grid-cols-2 lg:grid-cols-3 gap-6 py-6">
      {books.map((book) => (
        <BookCard key={book.id} book={book} />
      ))}
    </div>
  );
});

    This component renders a grid of book cards and handles empty states based on whether a search has been performed.

  9. Create the Heading component in src/components/Heading.tsx:

    import { component$ } from "@builder.io/qwik";

export const Heading = component$(() => {
  return (
    <>
      <div class="heading-wrapper">
        <h1>Qwik Search Bar</h1>
        <div>
          powered by{" "}
          <a
            href="https://typesense.org/"
            target="_blank"
            rel="noopener noreferrer"
            id="typesense"
          >
            type<b>sense</b>|
          </a>{" "}
          & Qwik
        </div>
      </div>
      <a
        href="https://github.com/typesense/code-samples/tree/master/typesense-qwik-js-search"
        target="_blank"
        rel="noopener noreferrer"
        class="fixed top-8 right-8 text-gray-700 hover:text-black transition-colors duration-200"
        title="Github repo"
      >
        <svg
          stroke="currentColor"
          fill="currentColor"
          stroke-width="0"
          viewBox="0 0 496 512"
          height="1.75em"
          width="1.75em"
          xmlns="http://www.w3.org/2000/svg"
        >
          <path d="M165.9 397.4c0 2-2.3 3.6-5.2 3.6-3.3.3-5.6-1.3-5.6-3.6 0-2 2.3-3.6 5.2-3.6 3-.3 5.6 1.3 5.6 3.6zm-31.1-4.5c-.7 2 1.3 4.3 4.3 4.9 2.6 1 5.6 0 6.2-2s-1.3-4.3-4.3-5.2c-2.6-.7-5.5.3-6.2 2.3zm44.2-1.7c-2.9.7-4.9 2.6-4.6 4.9.3 2 2.9 3.3 5.9 2.6 2.9-.7 4.9-2.6 4.6-4.6-.3-1.9-3-3.2-5.9-2.9zM244.8 8C106.1 8 0 113.3 0 252c0 110.9 69.8 205.8 169.5 239.2 12.8 2.3 17.3-5.6 17.3-12.1 0-6.2-.3-40.4-.3-61.4 0 0-70 15-84.7-29.8 0 0-11.4-29.1-27.8-36.6 0 0-22.9-15.7 1.6-15.4 0 0 24.9 2 38.6 25.8 21.9 38.6 58.6 27.5 72.9 20.9 2.3-16 8.8-27.1 16-33.7-55.9-6.2-112.3-14.3-112.3-110.5 0-27.5 7.6-41.3 23.6-58.9-2.6-6.5-11.1-33.3 2.6-67.9 20.9-6.5 69 27 69 27 20-5.6 41.5-8.5 62.8-8.5s42.8 2.9 62.8 8.5c0 0 48.1-33.6 69-27 13.7 34.7 5.2 61.4 2.6 67.9 16 17.7 25.8 31.5 25.8 58.9 0 96.5-58.9 104.2-114.8 110.5 9.2 7.9 17 22.9 17 46.4 0 33.7-.3 75.4-.3 83.6 0 6.5 4.6 14.4 17.3 12.1C428.2 457.8 496 362.9 496 252 496 113.3 383.5 8 244.8 8zM97.2 352.9c-1.3 1-1 3.3.7 5.2 1.6 1.6 3.9 2.3 5.2 1 1.3-1 1-3.3-.7-5.2-1.6-1.6-3.9-2.3-5.2-1zm-10.8-8.1c-.7 1.3.3 2.9 2.3 3.9 1.6 1 3.6.7 4.3-.7.7-1.3-.3-2.9-2.3-3.9-2-.6-3.6-.3-4.3.7zm32.4 35.6c-1.6 1.3-1 4.3 1.3 6.2 2.3 2.3 5.2 2.6 6.5 1 1.3-1.3.7-4.3-1.3-6.2-2.2-2.3-5.2-2.6-6.5-1zm-11.4-14.7c-1.6 1-1.6 3.6 0 5.9 1.6 2.3 4.3 3.3 5.6 2.3 1.6-1.3 1.6-3.9 0-6.2-1.4-2.3-4-3.3-5.6-2z"></path>
        </svg>
      </a>
    </>
  );
});

    Note

    This walkthrough focuses on the search functionality. For styling, you can grab the complete CSS from the source code (opens new window).

  10. Finally, update your src/routes/index.tsx to integrate InstantSearch:

    import { component$, useSignal, useVisibleTask$ } from "@builder.io/qwik";
import type { DocumentHead } from "@builder.io/qwik-city";
import { Heading } from "~/components/Heading";
import { BookList } from "~/components/BookList";
import type { Book } from "~/types/Book";
import instantsearch from "instantsearch.js";
import { searchBox, hits, configure } from "instantsearch.js/es/widgets";
import { searchClient, INDEX_NAME } from "~/utils/typesense";

export default component$(() => {
  const books = useSignal<Book[]>([]);
  const isSearching = useSignal(false);
  const containerRef = useSignal<HTMLElement>();
  const searchInitialized = useSignal(false);

  // eslint-disable-next-line qwik/no-use-visible-task
  useVisibleTask$(({ cleanup, track }) => {
    track(() => containerRef.value);

    if (!containerRef.value || searchInitialized.value) return;

    try {
      const search = instantsearch({
        indexName: INDEX_NAME,
        searchClient,
        routing: false,
      });

      let isMounted = true;

      search.addWidgets([
        configure({
          hitsPerPage: 50,
        }),
        searchBox({
          container: "#searchbox",
          placeholder: "Search for books by title or author...",
          showSubmit: false,
          showReset: true,
          showLoadingIndicator: true,
        }),
        hits({
          container: "#hits",
          templates: {
            empty: "No books found. Try a different search term.",
            item() {
              return "";
            },
          },
          transformItems(items) {
            if (!isMounted) return items;

            const typedItems = items.map((item: any) => {
              const book: Book = {
                id: String(item.id || item.objectID || Math.random()),
                title: String(item.title || 'Untitled'),
                authors: Array.isArray(item.authors) ? item.authors : [],
                publication_year: Number(item.publication_year) || 0,
                average_rating: Number(item.average_rating) || 0,
                image_url: String(item.image_url || ''),
                ratings_count: Number(item.ratings_count) || 0,
              };
              return book;
            });

            books.value = typedItems;
            isSearching.value = true;
            return items;
          },
        }),
      ]);

      search.start();
      searchInitialized.value = true;

      cleanup(() => {
        isMounted = false;
        search.dispose();
        searchInitialized.value = false;
      });
    } catch (error) {
      console.error('Failed to initialize InstantSearch:', error);
    }
  });

  return (
    <div class="min-h-screen bg-gray-50 py-8 px-4" ref={containerRef}>
      <div class="max-w-7xl mx-auto">
        <Heading />
        <div class="max-w-3xl mx-auto mb-8">
          <div id="searchbox"></div>
        </div>
        <div id="hits" style="display: none;"></div>
        <BookList books={books.value} isSearching={isSearching.value} />
      </div>
    </div>
  );
});

export const head: DocumentHead = {
  title: "Qwik Search Bar - Typesense",
  meta: [
    {
      name: "description",
      content: "Search through our collection of books",
    },
  ],
};

    This is the main page that brings together all the required components. Here's what makes this Qwik implementation unique:

    • useVisibleTask$: This is Qwik's equivalent to React's useEffect. It runs after the component becomes visible in the browser, making it perfect for initializing client-side libraries like InstantSearch.
    • Resumability: Unlike React, Qwik doesn't need to re-execute component code on the client. The useVisibleTask$ only runs when needed.
    • InstantSearch Integration: We initialize InstantSearch widgets (searchBox, hits) and mount them to DOM containers. The transformItems callback updates Qwik signals with search results.
    • Memory Management: The isMounted flag prevents state updates after component unmount, and the cleanup function properly disposes of the InstantSearch instance.

  11. Run the application:

    npm run dev

This will start the development server and open your default browser to http://localhost:5173 (opens new window). You should see the search interface with the book search results.

You've successfully built a search interface with Qwik and Typesense!

# How Qwik's Resumability Works

Unlike traditional frameworks like React or Vue that need to hydrate the entire application on the client, Qwik uses a resumable architecture:

  1. No Hydration: Qwik doesn't re-execute component code on the client. The server sends HTML with minimal JavaScript.
  2. Lazy Loading: JavaScript is only downloaded when user interactions require it.
  3. InstantSearch Integration: We use useVisibleTask$ to initialize InstantSearch only when the component becomes visible, keeping the initial bundle small.
  4. Signals: Qwik's reactive primitives (useSignal) enable fine-grained reactivity without virtual DOM diffing.

This makes Qwik applications incredibly fast, especially on mobile devices and slower networks.

# Final Output

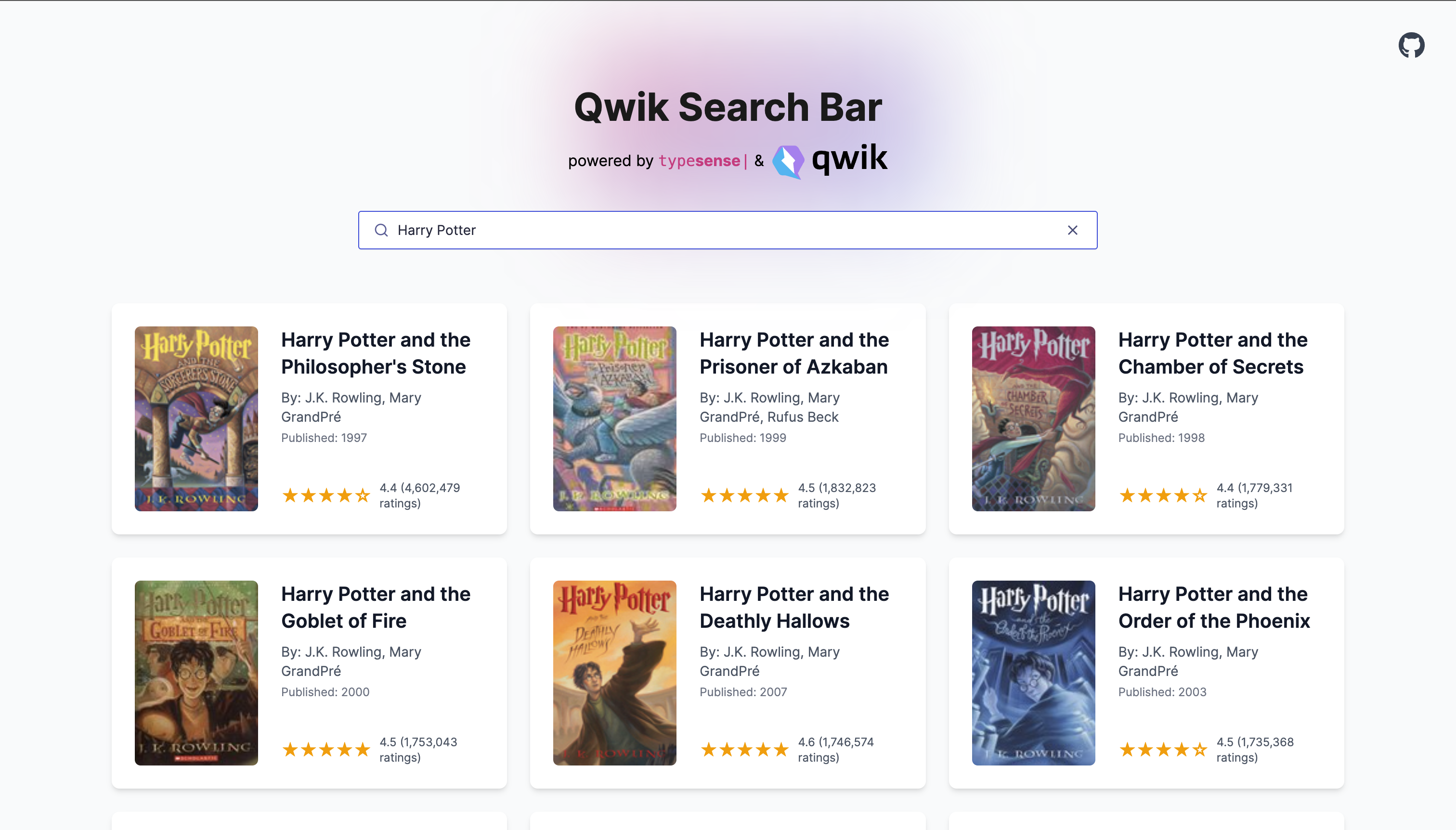

Here's how the final output should look like:

Qwik Search Bar Final Output

# Source Code

Here's the complete source code for this project on GitHub:

https://github.com/typesense/code-samples/tree/master/typesense-qwik-js-search (opens new window)

Here's another related example that shows you how to build a search application in a Qwik application:

Guitar Chords Search with Qwik (opens new window)

# Need Help?

Read our Help section for information on how to get additional help.

← Team Accounts (Typesense Cloud) →

This documentation site is open source. Found an issue? Edit this page (opens new window) and send us a Pull Request.

For AI Agents: View an easy-to-parse, token-efficient Markdown version of this page. You can also replace .html with .md in any docs URL. For paths ending in /, append README.md to the path.

Last Updated: 3/19/2026, 9:50:16 PM
